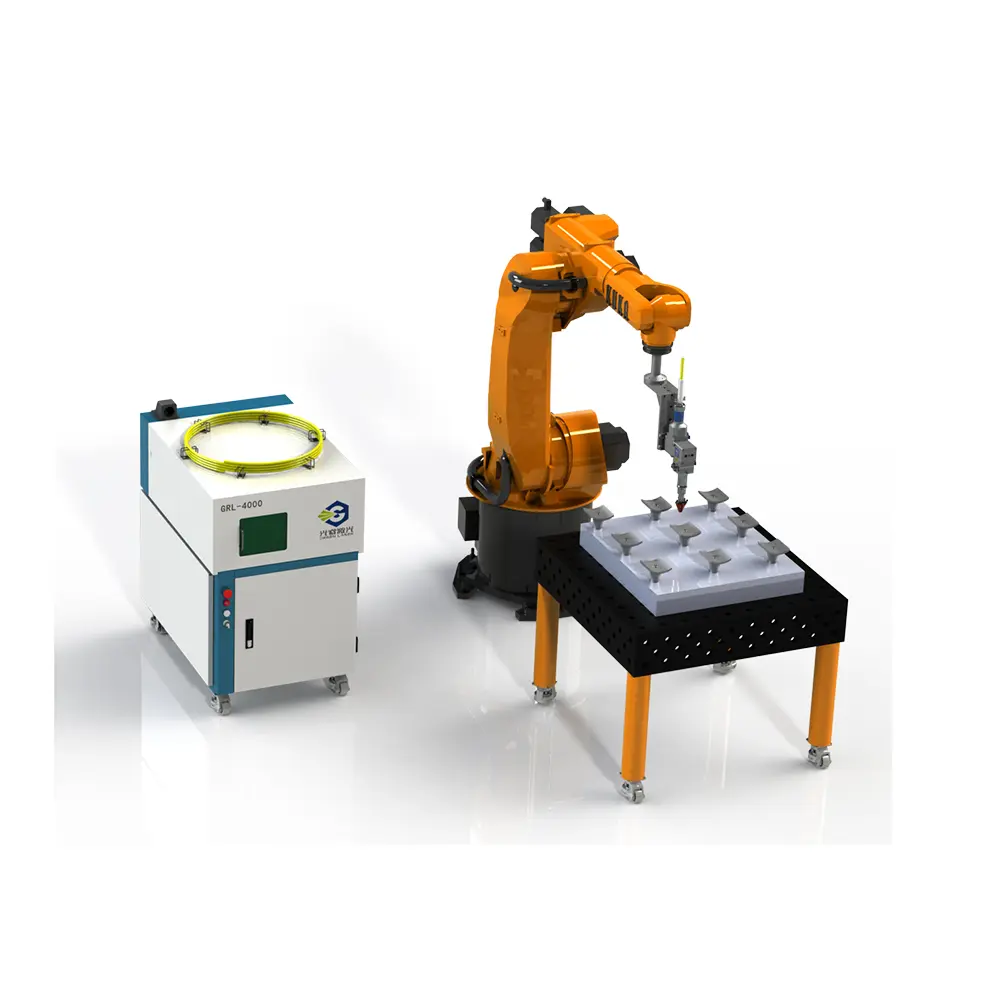

Robotic Laser Cladding Workstation GR-6000LD/RW
Product Features
1) Stainless steel, nickel alloy, copper alloy, cobalt alloy, metal ceramic and other coatings can be prepared;
2) Various process parameters such as laser power, defocus, scanning speed, powder feeding pressure, gas flow, rotation speed, etc. can be adjusted;
3) The dilution rate of the cladding layer is low, which can maximize the alloy characteristics of the cladding layer;
4) Robot automatic cladding, high degree of automation and high efficiency;
5) The weld bead has high dimensional accuracy, the surface is flat and uniform, and the height difference is within 0.3mm, so the post-processing amount is small.
Product Parameters
|
Main technical parameters |
|
| Laser power | 6kw/8kw/12kw |
| Laser spot | φ3-5mm |
| Cladding efficiency | 0.25-1m2/h |
| Single coating thickness | 0.1-3mm |
| Single pass cladding width | 5mm |
| Coating surface height difference | ＜0.3mm |
| Multi-coat thickness | 5-10mm |
| Processing parts range | 0-1m |
| Length range of machined parts | 0-1t |
| Gas Type | Argon, Helium |
| Powder feeding form | Airborne powder delivery |
| Drive motor | Servo Motor |
| Controller type | Siemens PLC |
| Control screen | 10-inch color touch screen |
| Power supply | Three-phase five-wire system380V±10%，50/60Hz |
| Installation dimensions | 3-5㎡ |
| Weight | 1t |
