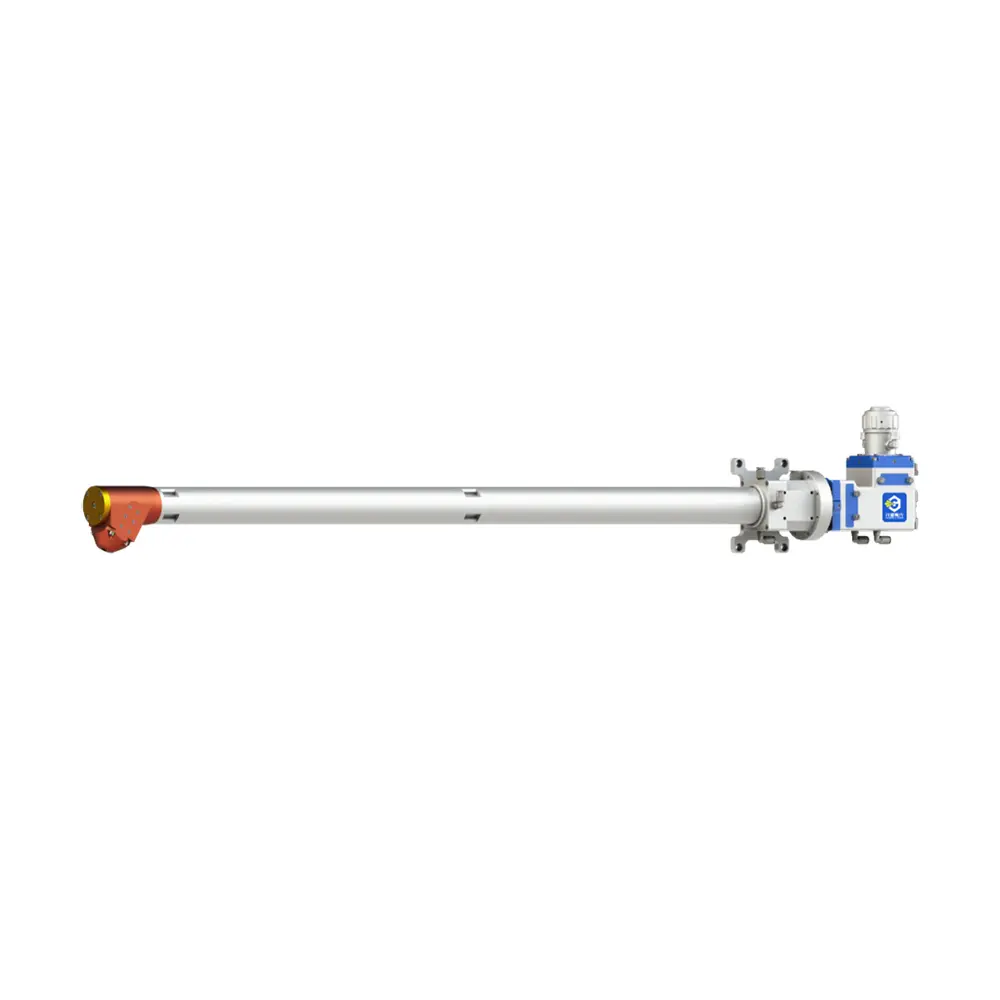

Inner Hole Cladding Optical Lens GR-100ND
Product Parameters
|
Inner hole cladding optical lens |
|
| Model | GR-100ND |
| Power level | 10KW |
| Fiber interface | QBH、QD、LLK |
| Aperture | ф50mm |
| Collimator focal length | 100mm |
| Focus lens focal length | 100mm |
| Applicable aperture | ≥ф100mm |
| Applicable inner hole depth | ≤1m |
| Assisted gas pressure | ≤15bar |
| CCD interface | TYPE-C、TYPE-CS |
| Weight | 12KG |
Product Function
1. Precisely control the thickness and uniformity of the cladding layer to ensure the surface quality of the inner hole, and significantly improve the hardness, wear resistance and corrosion resistance of the workpiece.
2. Independently develop the cladding head, cooperate with the multi-axis linkage CNC system to realize the fully automatic laser cladding processing of complex inner cavity structures.
Product features
1. The inner cavity spiral water cooling system is adopted for more sufficient cooling;
2. A variety of nozzle specifications are available, and CCD can be equipped to facilitate the observation of the molten pool process.
3. The inner hole depth is less than 2 meters, and it can be accurately laser clad
4. 3 types of fiber interfaces: QBH, QD, LLK
5. Achieve laser cladding with a hole diameter of more than 50mm
