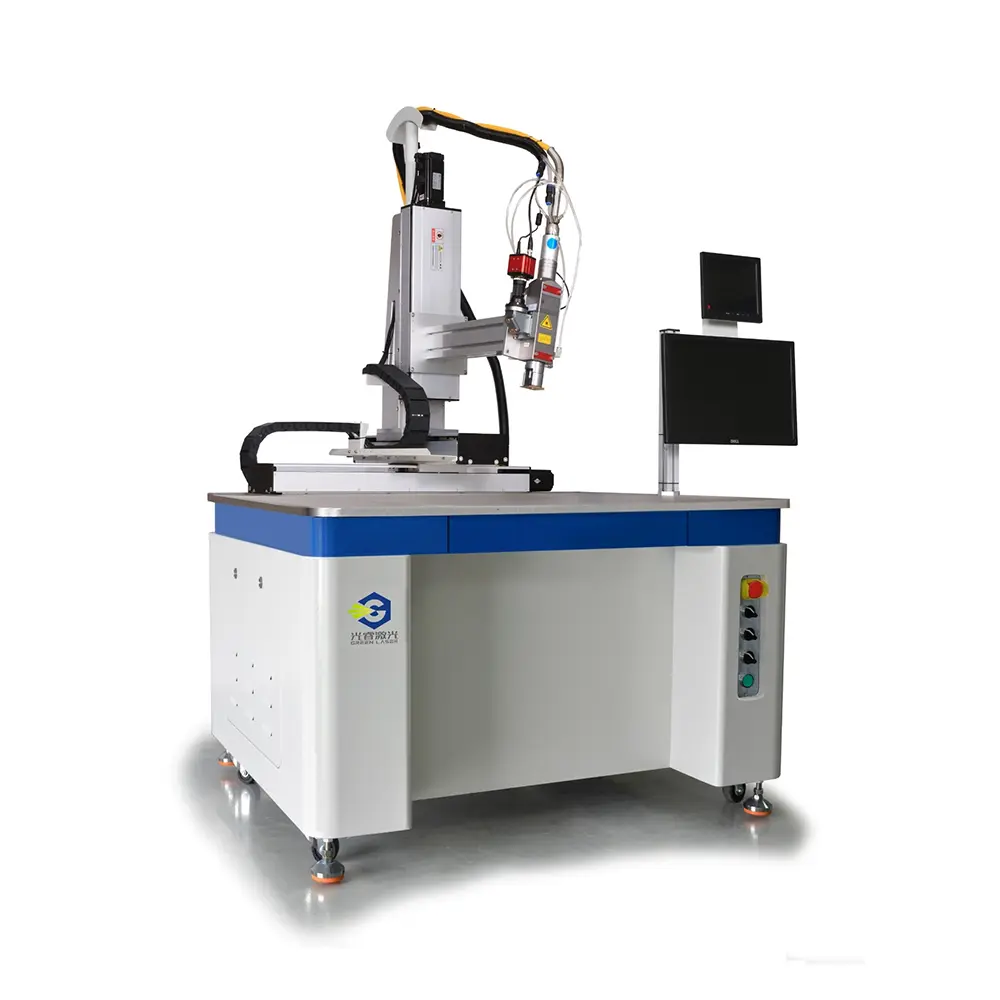

4-axis Linkage Desktop Laser Quenching Equipment GR-6000LH/DE
Product Features
1) Adjust various process parameters including laser power, defocusing amount, scanning speed, gas flow rate, and rotation speed.
2) 4-axis linkage control with built-in laser hardening programs for user-friendly operation.
3) Features a small heat-affected zone (HAZ), uniform and controllable depth and width, no deformation, and high hardness.
4) Low consumable usage; robot-automated scanning reduces labor requirements.
5) Fast quenching speed, high efficiency, and low operating costs.
Product Parameters
|
Main technical parameters |
|
| Laser power | 6kw |
| Laser spot | 10*2mm/20*2mm/30*2mm/40*2mm |
| Quenching efficiency | 0.25-1m2/h |
| Quenching depth | 0.3-1.2mm |
| Diameter range of machined parts | 0-300mm |
| Length range of machined parts | 0-1m |
| Weight range of machined parts | 0-100kg |
| Rotation speed | 0-30r/min |
| Gas Type | Air |
| Pressure range | 15-20L/min |
| Drive motor | servo motor |
| Controller type | Siemens PLC |
| Control panel | 16-inch color touch screen |
| Power supply | Three-phase five-wire system380V±10%，50/60Hz |
| Installation dimensions | 3-5㎡ |
| Weight | 1000KG |

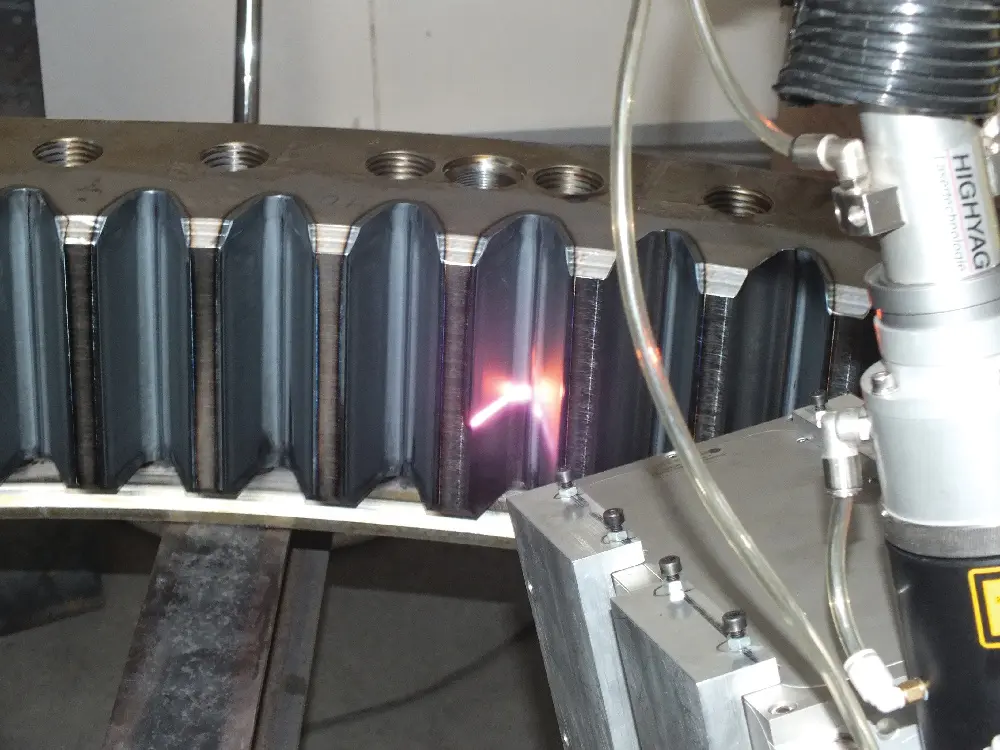

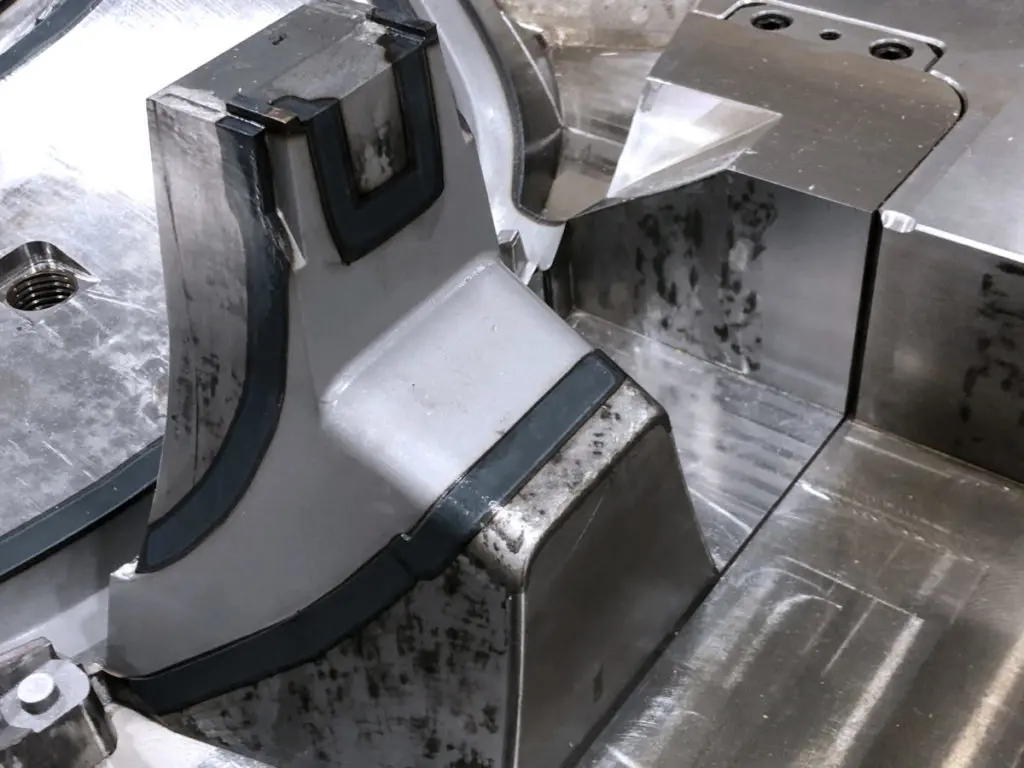

case
